• Belt Drive System
  A system where a rubber belt connects a DC motor to a turntable, transferring power to rotate the platter.

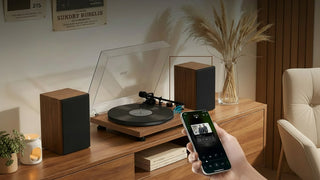

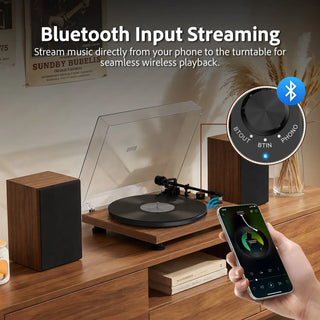

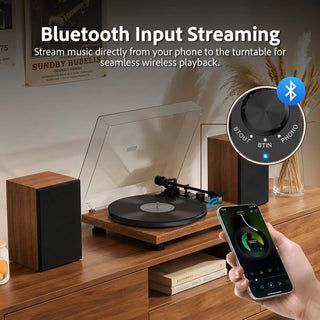

• Bluetooth Input and Output
  With Bluetooth input, you can wirelessly stream audio from your smartphone, tablet, or computer directly to your turntable. This allows you to play digital music files through your analog turntable system. Bluetooth output enables you to send the audio signal from your turntable to wireless headphones or speakers. This allows you to listen to your vinyl records without disturbing others or using wired connections.
• Manual Operation System
  Here's what manual operation typically involves:
  Starting and stopping the turntable: The user needs to physically place the stylus on the record and lift it off when finished.
  Changing speed: The user has to manually adjust the speed of the turntable to match the record's speed (33 1/3, 45 RPM).
  Cueing the arm: The user must manually move the tonearm to the desired starting point on the record.
  The UD006 manual turntable can produce a warmer, more analog sound.

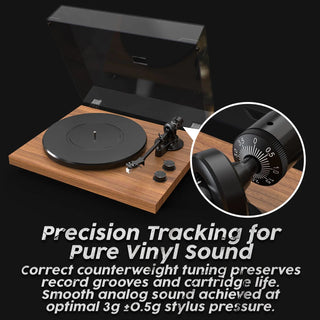

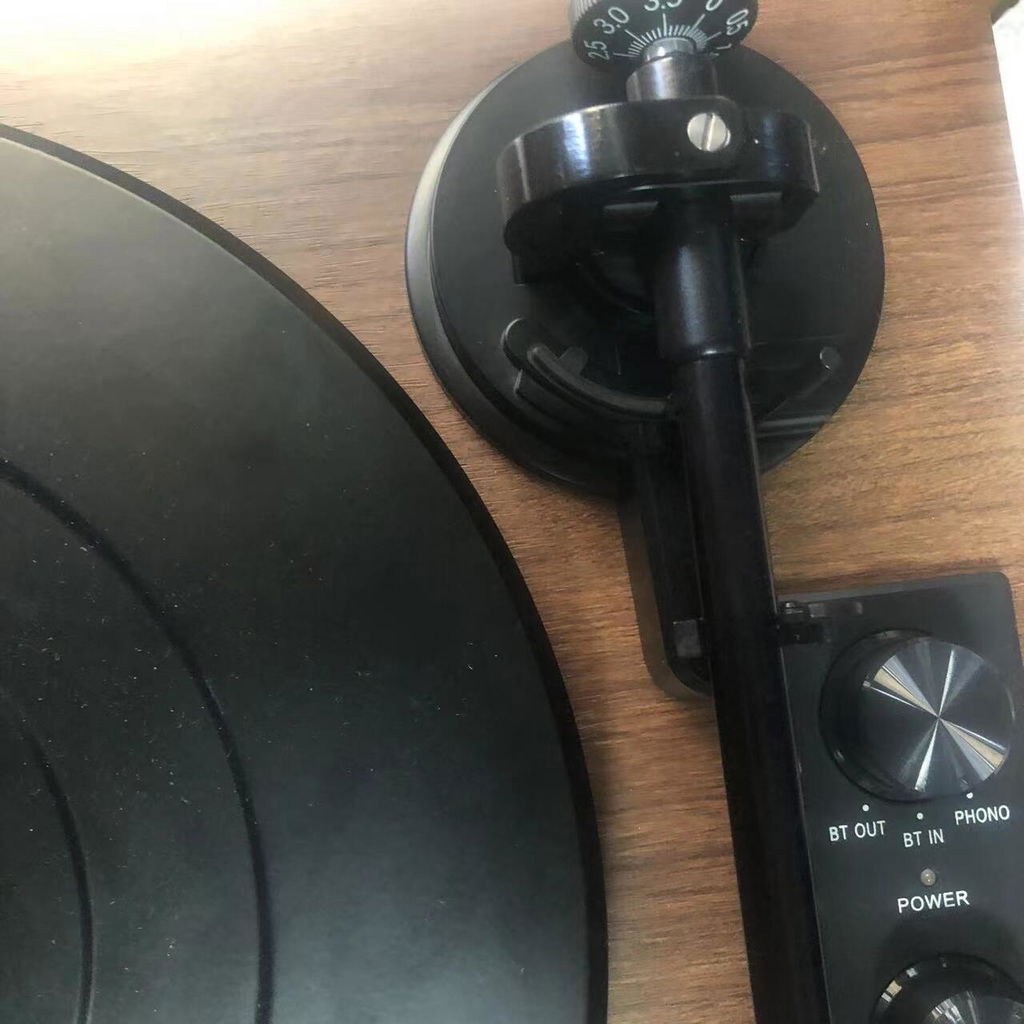

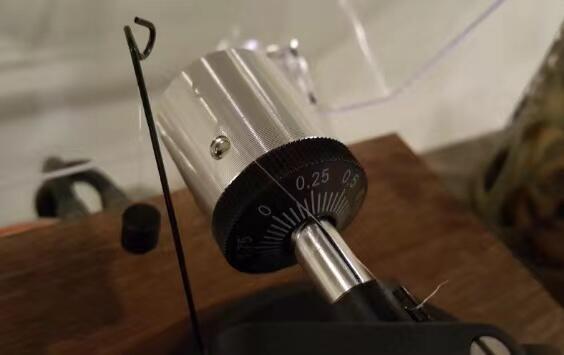

• Adjustable Counterweight
  A movable weight attached to the tonearm that can be adjusted to apply the correct tracking force to the stylus, ensuring accurate sound reproduction.

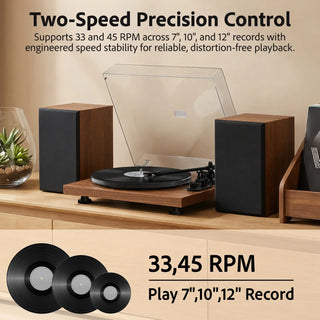

• Support 7" 10" 12" Record Size
  Accommodates a variety of record sizes, including 7", 10", and 12" formats.
• 36W Power Consumption
  Energy-efficient design with only 70 watts of power consumption.
• AC Power Adapter, DC Output 9V/2A
  Provides a 9-volt DC output at 2 amps.

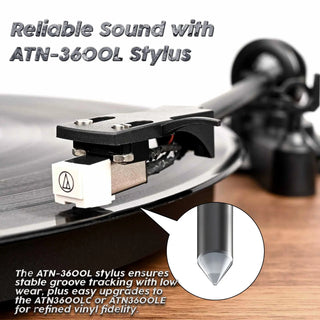

• Replaceable ATN-3600L Cartridge
  Equipped with a user-replaceable ATN-3600L cartridge for extended product life.
• 33 1/3, 45RPM Speeds
  Capable of handling standard 33 1/3 and 45 RPM vinyl records.
• ±0.15% Wow and Flutter
  Offers exceptional speed stability with a wow and flutter measurement of ±0.15%.
• +/-1.50% Speed Variation
  Offers exceptional speed stability with a speed variation measurement of +/-1.50%.
• 65dB Signal to Noise
  Provides a 72dB signal-to-noise ratio, minimizing background noise and maximizing audio clarity.
• Tonearm Lift
  Features an automatic tonearm lift mechanism for added convenience and record protection.
• Tonearm Clip
  Protects the needle from damage when the turntable is moved.

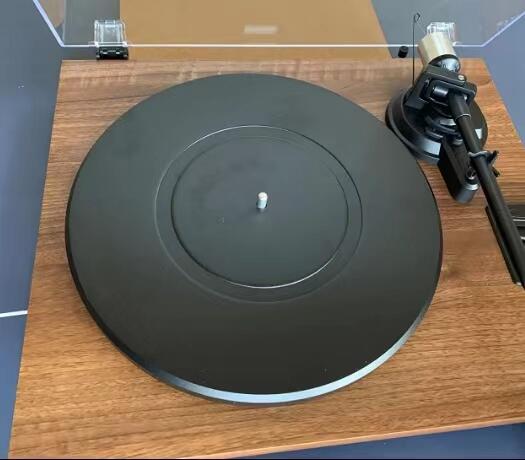

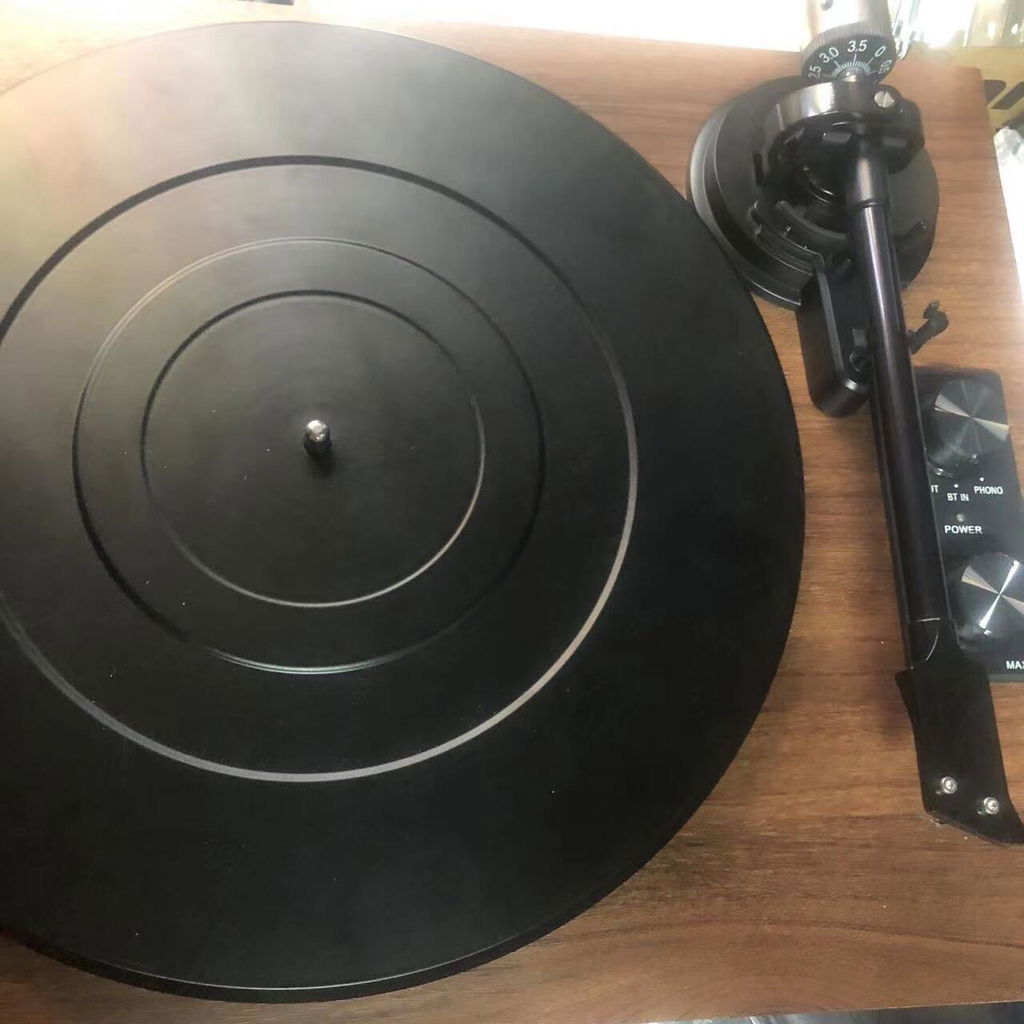

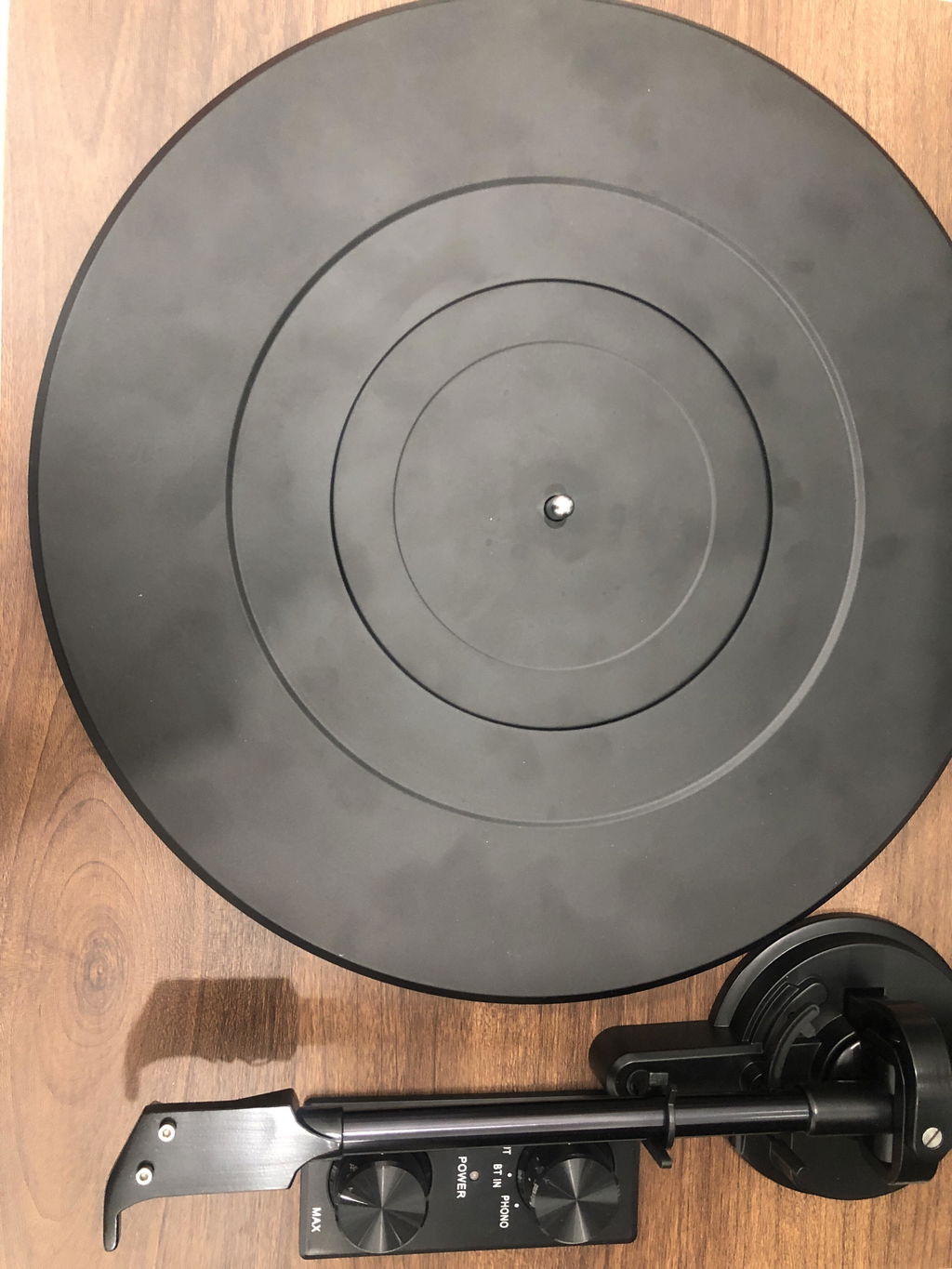

• Iron Platter
  The material used for the turntable platter, is the rotating platform where the record is placed. Iron is a common material used for platters due to its specific properties that contribute to the overall sound quality and performance of a turntable.
• 12" Platter Diameter
  The diameter of the turntable's platter, which is the rotating platform where the record is placed. In this case, the diameter of the UD006 record player is 12 inches.
• Built-in Preamp
  Equipped with a high-quality, built-in phono preamplifier for direct connection to a turntable.

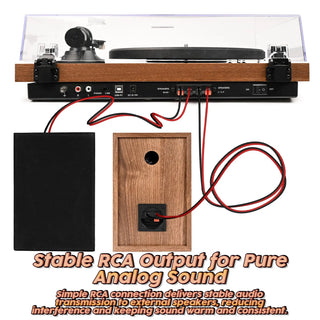

• RCA Output
  Provides stereo analog audio output via RCA jacks.
• AUX Input
  UD006's 3.5mm AUX input allows you to effortlessly connect your smartphone, tablet, or any other audio device for versatile playback options.

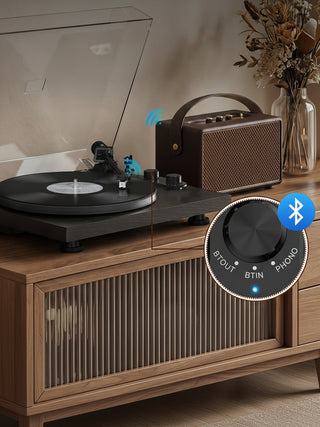

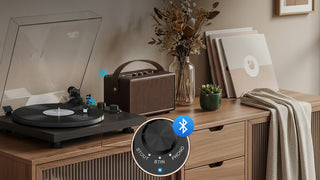

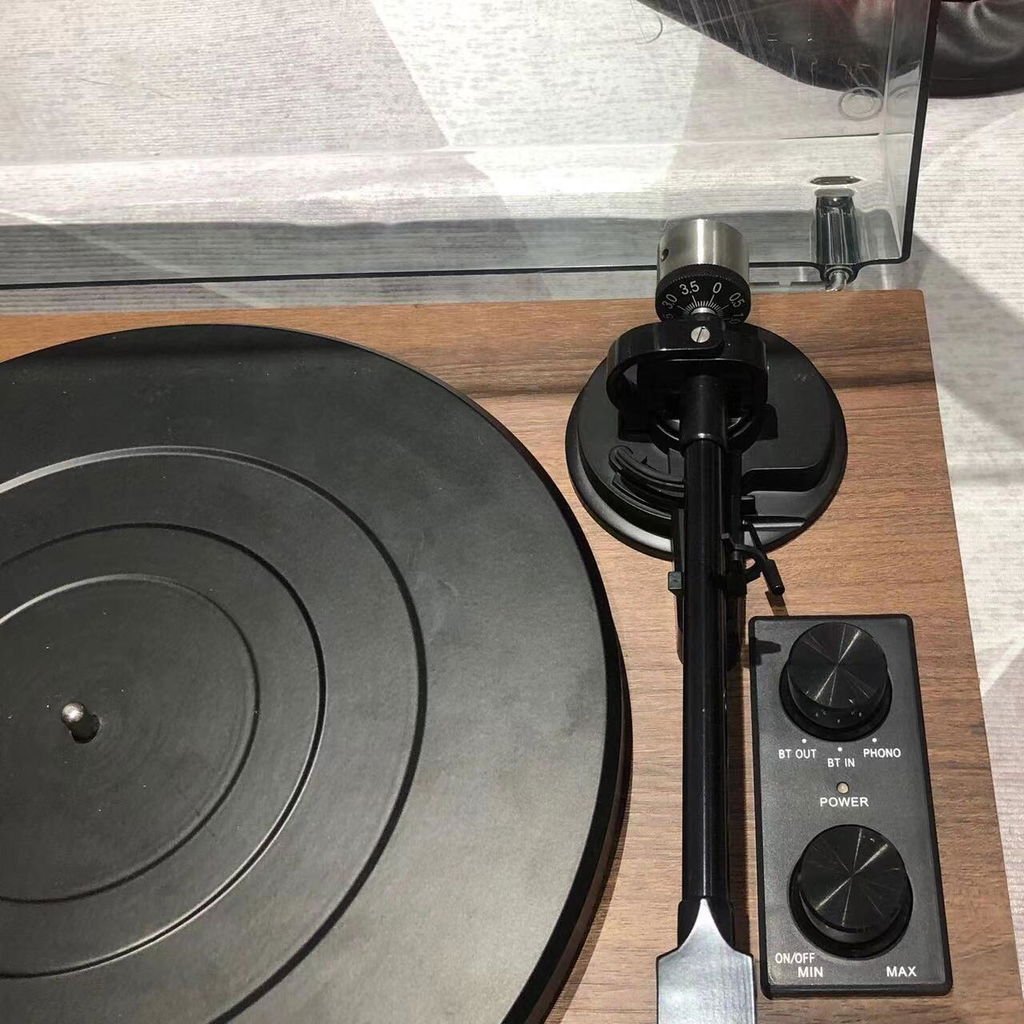

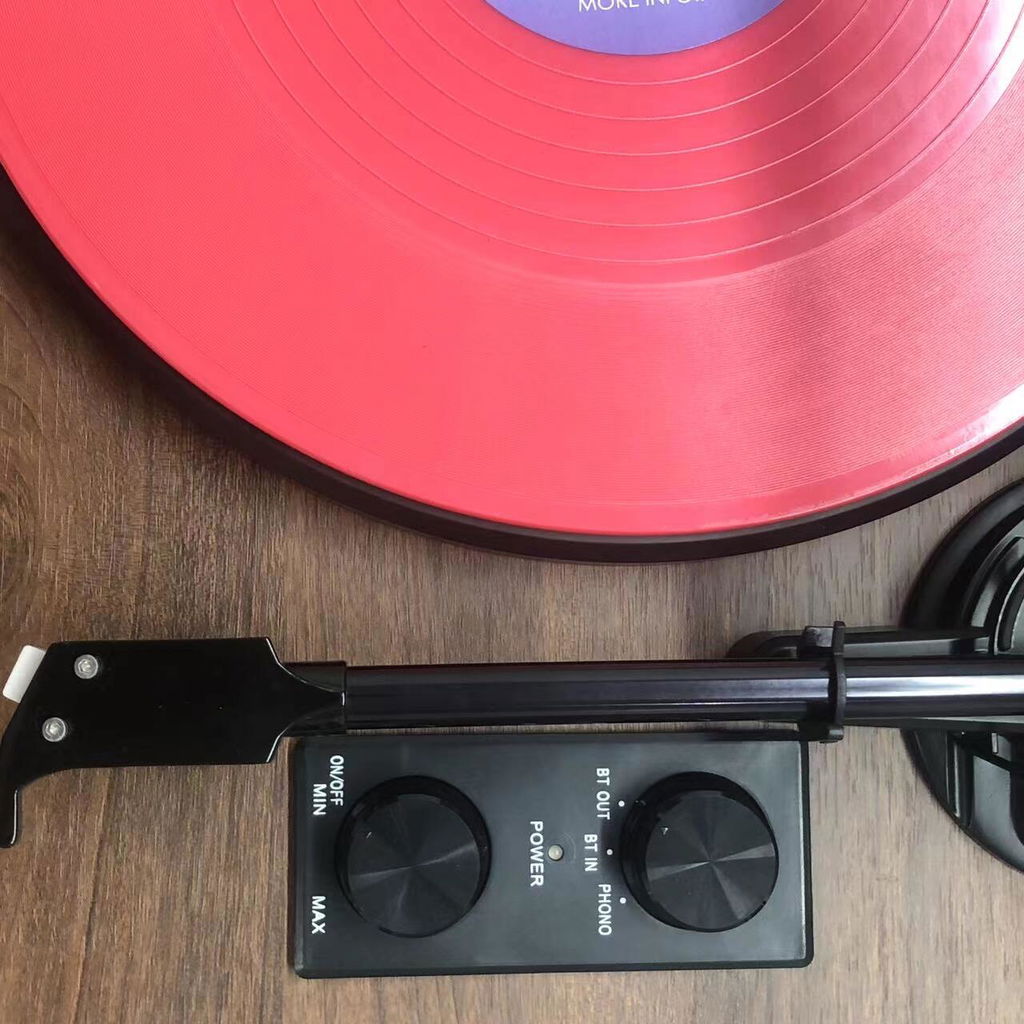

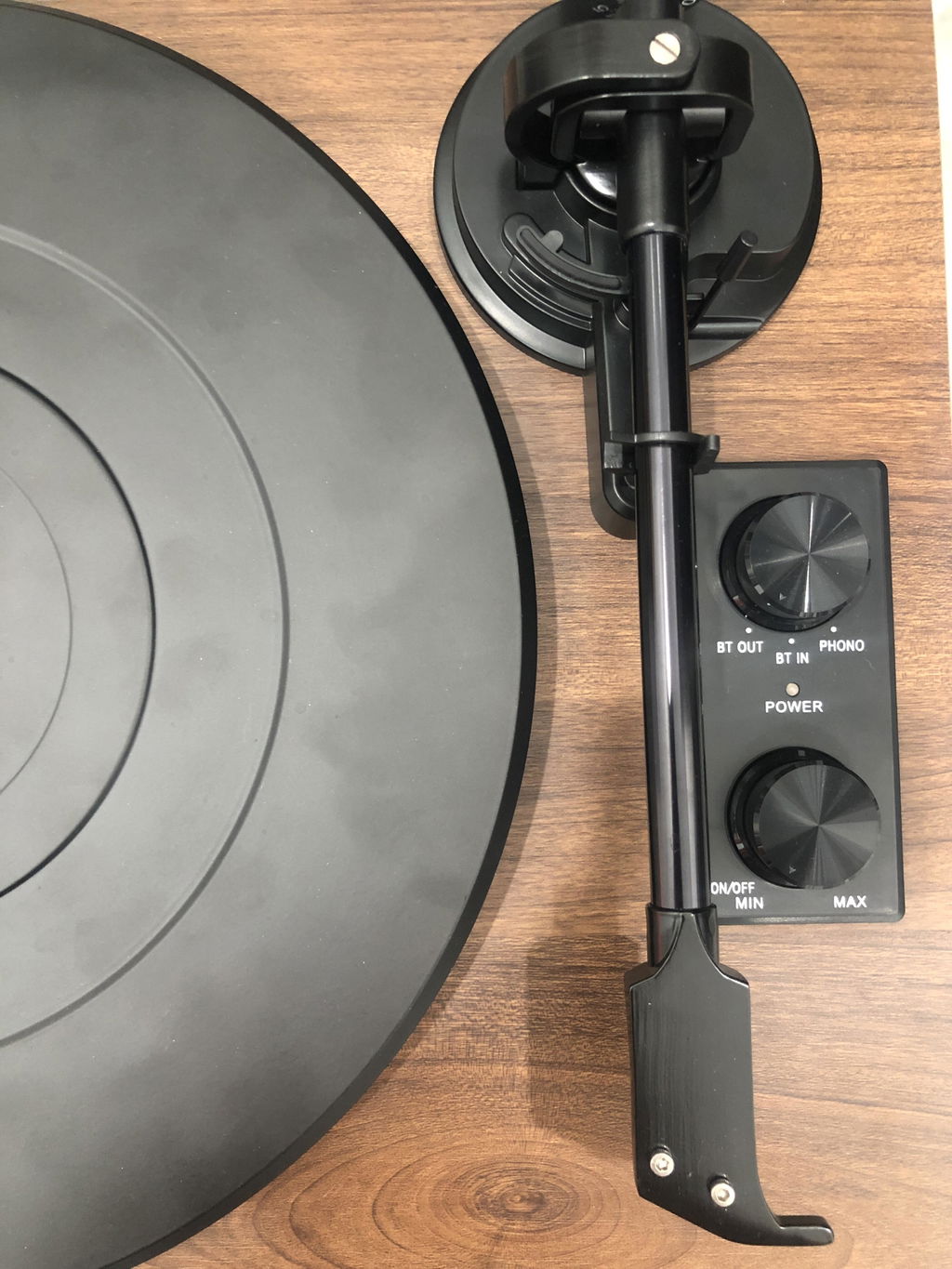

• LINE/PHONO/Bluetooth Out Switch
  When connected to a dedicated phono preamp or an integrated amplifier with a built-in phono stage, you should select the PHONO output. If your turntable has an integrated phono preamp, you would select the LINE output. When you want to send the audio signal from your turntable to a Bluetooth-enabled device, such as wireless headphones or speakers, you would select the Bluetooth output.
• Auto Stop
  The auto-stop mechanism is designed to detect the end of a record, typically when the stylus reaches the run-out groove. Once the end of the record is detected, the turntable will stop automatically.
• MDF Material
  Engineered wood product made from wood fibers.

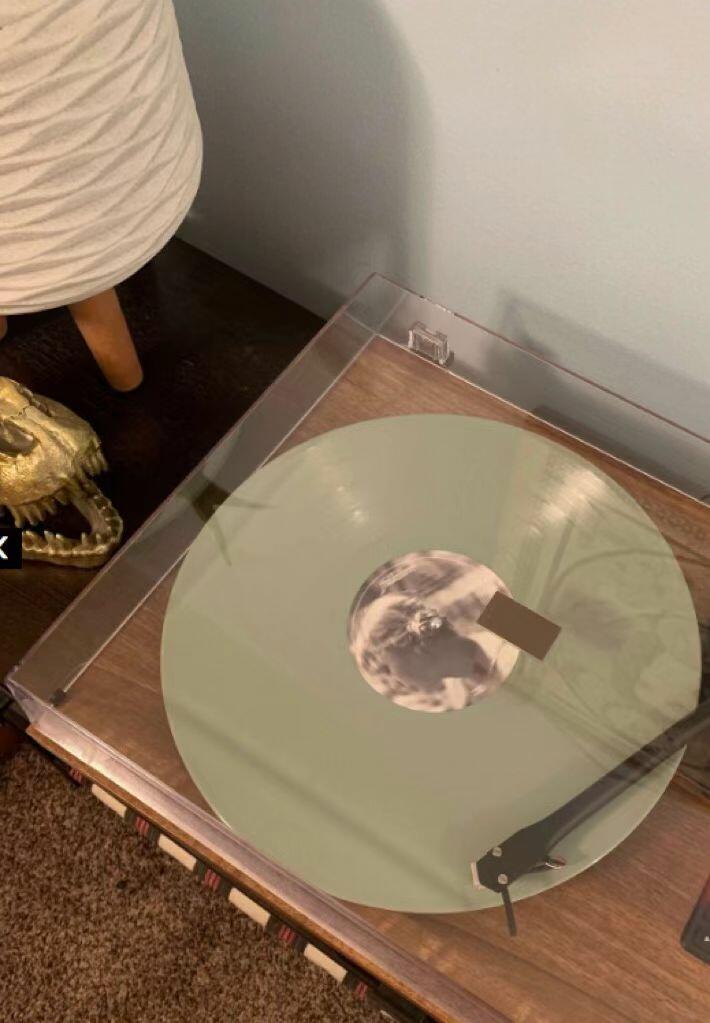

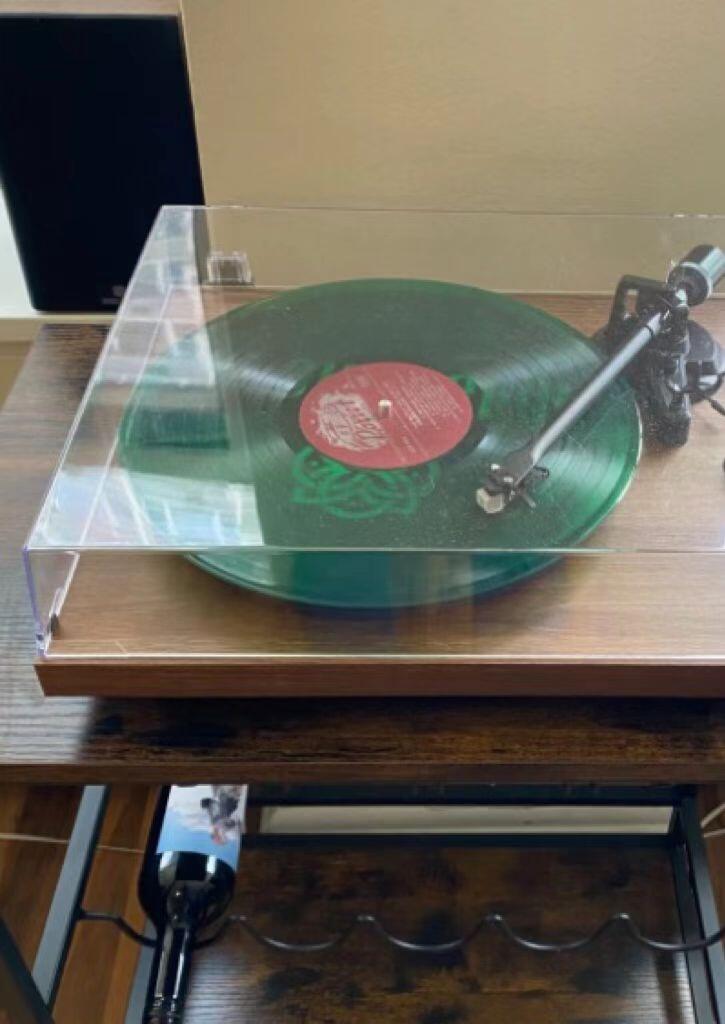

• Removable Dust Cover
  A protective covering designed to be easily removed and replaced.

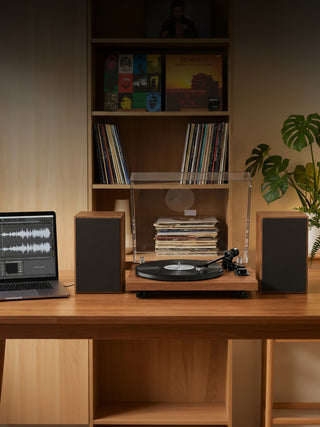

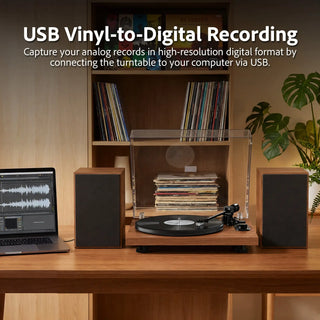

• USB TO PC
  Allows you to directly connect your turntable to a computer via a USB cable. By connecting your turntable to your computer, you can convert your analog vinyl records into digital audio files (like MP3 or WAV). This allows you to preserve your vinyl collection in a digital format, making it easier to share, backup, and listen to on various devices.

• Connection Type: Wired
  The passive speakers are connected to a device (like a computer, TV, or audio receiver) using physical cables. This is the traditional way to connect speakers, and it often results in a higher-quality sound compared to wireless connections.

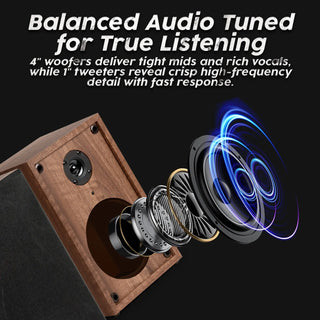

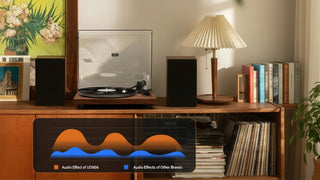

• Two Tweeters and Two Woofers
  Two tweeters are a type of loudspeaker designed to reproduce high-frequency sounds. They are typically small and produce clear, high-pitched tones. Two woofers are a type of loudspeaker designed to reproduce low-frequency sounds. They are typically larger and produce deep, bassy tones.
• 2*20-watt Power Output
  There are two speakers in the system, so the total power output is 20 watts multiplied by 2, which equals 40 watts.

• Static Balanced, Straight-Type
  This means the tonearm is balanced when it's in a horizontal position, and the pivot point is a straight, vertical line. This design helps to reduce friction and improve sound quality.
• Cueing Lever
  A lever that is used to manually lift the tonearm away from the record. This is often used to prevent damage to the stylus when starting or stopping playback.
• Aluminum Material
  The tonearm is made of aluminum, a lightweight and rigid material that helps to improve sound quality and reduce resonance.
• 36 AWG Litz Cable / 7 Strand Tonearm Wire
  This refers to the wiring used in the tonearm. 36 AWG is a measure of the wire's thickness, and "Litz" refers to a type of stranded wire that reduces skin effect and improves high-frequency response. 7-strand means there are 7 individual wires bundled together to form a single cable.
• 0.74 oz (21.1 g) Effective Tonearm Mass
  This is the weight of the tonearm, which affects how the tonearm tracks the record and interacts with the cartridge. A lower mass typically allows for better tracking and higher frequencies.
• 0.73 inches (18.5 mm) Overhang
  Overhang refers to the horizontal distance between the stylus tip and the vertical line that passes through the tonearm pivot. This measurement is important for proper cartridge alignment.
• 8.6 inches (218.5 mm) Effective Tonearm Length
  This is the distance from the tonearm pivot to the stylus tip. This measurement is also important for cartridge alignment and tracking.

• 2.5mV Output Voltage
  This refers to the electrical signal produced by the cartridge when it vibrates in response to the grooves on a vinyl record. A higher output voltage typically means less amplification is needed from the phono preamp.
• 20Hz-20kHz Frequency Response
  This specifies the range of frequencies that the cartridge can accurately reproduce. A wider frequency response generally results in a more natural and detailed sound.
• 2.0dB Channel Balance
  This indicates how well the left and right channels of the cartridge match in terms of output level. A lower number means better channel balance, which is crucial for stereo imaging.
• 1kHz/10kHz: ＞18dB Channel Separation
  This measures the isolation between the left and right channels at specific frequencies. Higher numbers indicate better channel separation, reducing crosstalk between channels.
• 3.5±0.5g Recommended Tracking Force
  Tracking force refers to the downward pressure applied by the stylus onto the record. The specified range indicates the optimal tracking force for this cartridge to ensure proper contact with the record groove.
• Highly Polished and Shaped .0006 inch Conical Diamond
  This describes the stylus, which is the part of the cartridge that actually reads the grooves on the record. "Conical" refers to the shape of the diamond tip, and ".0006 inch" is its size. A highly polished and shaped diamond stylus can improve tracking accuracy and reduce wear on the record.
• 0.18oz,5.0g Cartridge Weight
  The weight of the cartridge is either 0.18 ounces or 5.0 grams.

  To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.

  To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

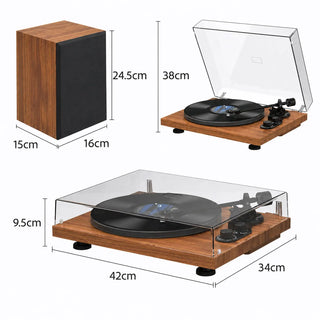

• Turntable size: 14.09" L x 16.42" W x 4.92" H
• Speaker size: 6" W x 6" D x 9" H
• Weight: 20.72BL/9.4KG

• Brown
