Product Details
Model ST-01 Audio input Bluetooth / USB / Coaxial / Optical / RCA Audio output Banana speaker jacks / 3.5mm AUX Max output power 100W+100W (4Ω) Matched impedance 3-8Ω Sampling rate supported 96KHz/24Bit(USB),48KHz/24Bit(Bluetooth),192KHz/24Bit(COAX/OPT) Treble / Bass control range ±6dB System PC-USB supported XP/W7/W8/W10/MAC/ Linux Frequency response 20Hz-20kHz(±1dB) S/N ratio ≥98dB THD 0.07% Working voltage DC 18-30V Dimensions(W*D*H) 115*98*54mm / 4.53*3.86*2.13in Net weight 634g / 1.40lb Package weight 1.4kg / 3.09lb

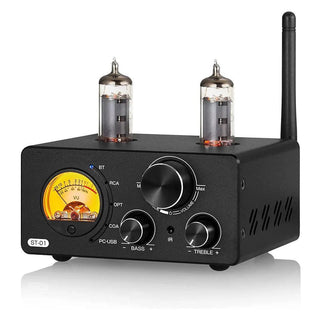

Retro Vacuum Tube

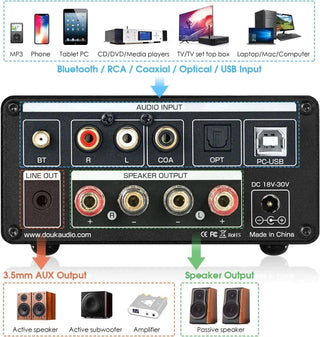

Default 6K4 vacuum tubes can offer warm tube soundBluetooth 5.0 / USB / Coaxial / Optical / stereo RCA inputs
3.5mm AUX output to build 2.1-CH system (active speaker / active subwoofer) or multi-channel system (another amplifier)
100W*2 @ 4 ohm
Suits most 3~8 ohm passive speakers
bluetooth 5

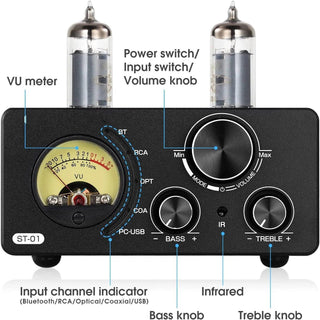

Classic VU Meter
Tone Control Panel
Remote Control
Product Details
| Model | ST-01 |
| Audio input | Bluetooth / USB / Coaxial / Optical / RCA |
| Audio output | Banana speaker jacks / 3.5mm AUX |
| Max output power | 100W+100W (4Ω) |
| Matched impedance | 3-8Ω |
| Sampling rate supported | 96KHz/24Bit(USB),48KHz/24Bit(Bluetooth),192KHz/24Bit(COAX/OPT) |
| Treble / Bass control range | ±6dB |
| System PC-USB supported | XP/W7/W8/W10/MAC/ Linux |
| Frequency response | 20Hz-20kHz(±1dB) |
| S/N ratio | ≥98dB |
| THD | 0.07% |
| Working voltage | DC 18-30V |

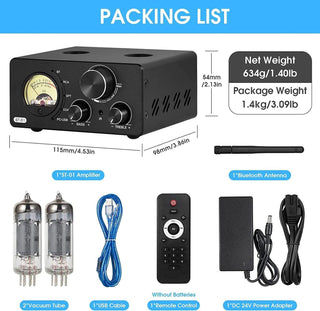

| Dimensions(W*D*H) | 115*98*54mm / 4.53*3.86*2.13in |
| Net weight | 634g / 1.40lb |
| Package weight | 1.4kg / 3.09lb |
|
|
|
|
Retro Vacuum Tube
|
Bluetooth 5.0 / USB / Coaxial / Optical / stereo RCA inputs |
3.5mm AUX output to build 2.1-CH system (active speaker / active subwoofer) or multi-channel system (another amplifier) |
100W*2 @ 4 ohm
|
|
|
|
|
|
bluetooth 5 |
Classic VU Meter |
Tone Control Panel |
Remote Control |
