High Quality Record Player with Built-in HiFi Speakers & Magnetic Cartridge R517

~~$289.99~~ $259.99 Save $30.00

Unit price: per

4.78 (163)

Quantity

Shipping calculated at checkout.

*This product is in stock at our US warehouse, you can purchase it directly.

Process Your Order Within 1 Business Day

Free Shipping & Tax

Have Questions? Contact us

60-Day Return & Exchange Policy

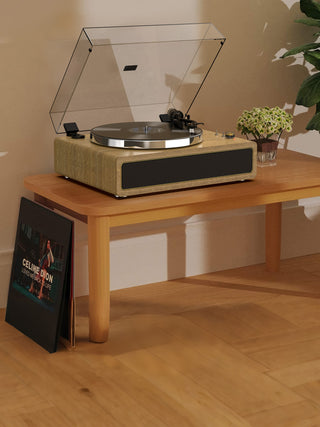

Vintage All-in-One Record Player

Equipped with 30-watt hifi speakers, the R517 produces rich and full sound. The four-point suspension system effectively isolates vibrations to prevent platter resonance, unlike ordinary all-in-one turntables. The R517 ensures long-lasting performance without damaging your records or stylus.
Easily switch between Bluetooth streaming from your phone and the warm, rich sound of vinyl records.
Upgrade your listening experience with the R517 and its high-quality ATN-3600L moving magnet cartridge. Enjoy accurate tracking, detailed soundstage, and years of reliable performance.

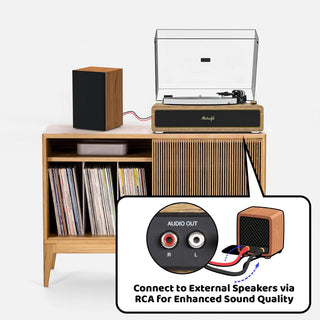

Enjoy the flexibility and superior sound quality of the R517's RCA output. Connect to your favorite amplifier or receiver to create a custom audio system tailored to your listening preferences.
Enjoy a hassle-free listening experience with the R517. The automatic stop function eliminates the need to manually stop the turntable.

Modern Bluetooth Input Record Player for Music Lovers

With a simple flick of a switch, effortlessly transition between Bluetooth and vinyl playback. Enjoy your favorite pop tunes by connecting your phone via Bluetooth, or immerse yourself in the warm, analog sound of vinyl with just a flip of the switch.

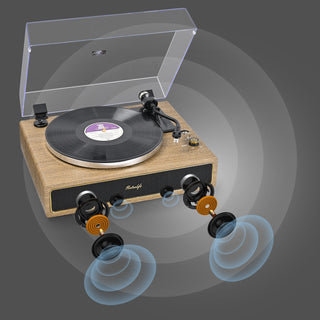

Built-in HiFi Speakers for Rich, Analog Sound

With a built-in 2.1 full-range sound system, featuring 2*10W high-frequency speakers and 2*5W low-frequency speakers, the R517 delivers a clear, three-dimensional audio experience that heightens your auditory senses. The record player with built-in speaker fits your apartment and any other space. It's the perfect addition to any home. Simply unpack, easily set up, and start listening.

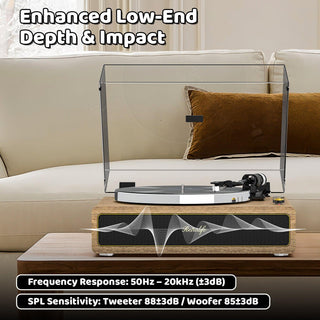

Experience a Wider Soundstage with the R517

The R517 turntable offers an expansive frequency response of 50-20Hz/3dB, delivering a wider soundstage and deeper bass than other turntables in its class. With a sensitivity of 88±3dB for highs and 85±3dB for lows, the R517 provides a balanced and immersive listening experience.

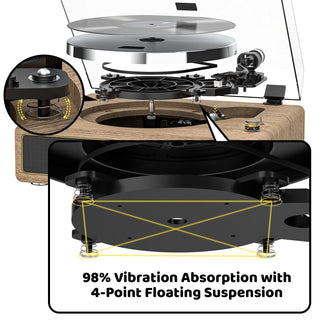

Built-in Suspension System

Interior design: The 12-inch platter is mounted on a suspended subchassis, isolated from the main chassis by the 4-point springs to effectively reduce external vibrations. Damping materials such as rubber or bitumen are used within the chassis to absorb vibrational energy and minimize resonance.
Advantages: Improved sound quality, reduced resonance, lower background noise and protect your stylus and vinyl record.

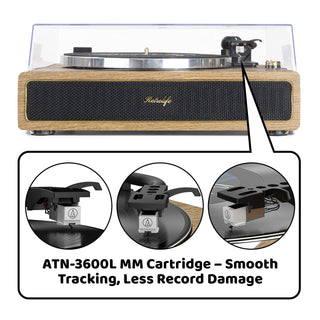

Long-lasting Performance with Replaceable ATN-3600L Cartridge

The R517 turntable features the renowned ATN-3600L moving magnet cartridge, offering exceptional sound quality and durability. Plus, it's easily replaceable, ensuring your turntable remains in top condition for years to come. It is a great choice for both audiophiles and casual listeners.

Minimalist Button Controls for Beginners

Rotating the gold volume knob to the right will amplify the audio output.

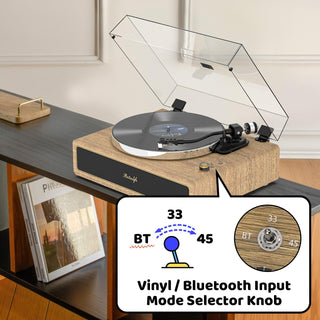

Toggle the button's lever to switch between Bluetooth and vinyl modes (33 and 45 RPM speeds).
Toggling the button's lever turns the turntable's auto-stop function on or off.

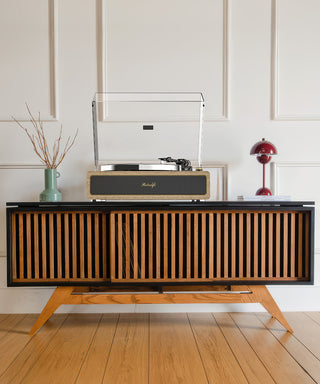

Perfectly Sized Record Player

A compact retro all-in-one turntable that fits just right into your living space. With dimensions that are just perfect, this turntable seamlessly integrates into your bookshelves, TV cabinets, and more.

Key Technology

These features make R517 modern turntables more easy set up. Whether you want to enjoy the warm sound of vinyl records or digitize your collection, they provide convenience and flexibility.

Built-in Hi-Fi Speakers

Converts analog signals from records into audible sound. The tweeters reproduce high-frequency sounds, such as the sharp tones of instruments and high-pitched vocals, offering a more delicate listening experience. The woofers reproduce low-frequency sounds, such as drums and bass, providing a powerful and rich sound.

Wireless Bluetooth 5.0

Enjoy the freedom of wireless music with Bluetooth 5.0. Pair your phone with your turntable quickly and easily, and experience superior sound quality with faster transmission speeds and a more stable connection.

Four-point Spring Suspension

This system isolates the turntable from external vibrations, effectively reducing the impact of external disturbances on platter rotation and enhancing sound purity.

Adjustable 33 and 45 RPM Speeds

33 RPM records are typically 12 inches in diameter, while 45 RPM records are usually 7 inches. Different speeds require different tracking forces to ensure the stylus accurately follows the grooves in the record.

Replaceable Magnetic Cartridge

Offers excellent value for money and delivers impressive sound quality. The ATN3600L typically comes with an elliptical diamond stylus, providing excellent tracking ability and durability.

12-Inch Full-Size Aluminum Platter

Aluminum's excellent rigidity significantly reduces platter warping, enhancing sound clarity and detail. The heavier weight effectively suppresses resonance, improving turntable stability.

Adjustable Counterweight

Allows you to fine-tune the tracking force for optimal sound reproduction, ensuring that you get the most out of your vinyl collection.

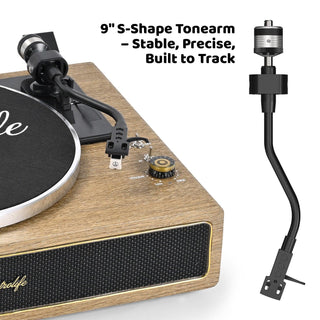

Aluminum S-shaped Tonearm

The aluminum material's low density reduces tracking force on the stylus, improving sensitivity. Its high rigidity effectively suppresses resonance, reducing distortion. The S-shaped design helps to compensate for horizontal tracking errors, enhancing soundstage and imaging.

Belt Drive System

Offers relatively stable rotation speeds, ensuring that records are played at the correct speed to prevent pitch distortion. The belt acts as a buffer, effectively protecting the motor and platter, extending equipment life.

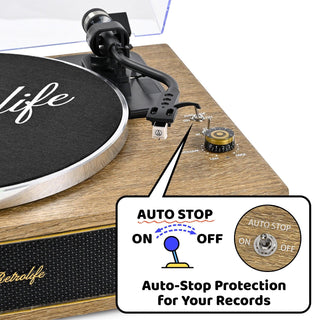

Automatic Stop Function

After the record finishes playing, the tonearm automatically lifts, and the turntable stops spinning. This prevents the stylus and platter from being damaged due to accidental oversight.

RCA Output Function

RCA connectors provide a stable and reliable transmission of analog audio signals, minimizing interference and ensuring high-quality sound. RCA outputs typically offer stereo output, preserving the original stereo soundstage of vinyl records.

AUX Input Function

In addition to playing vinyl records, you can connect other audio devices such as digital music players and FM radios via the AUX input, transforming your turntable into a versatile audio system.

Tech Specs

Belt Drive System
A system where a rubber belt connects a motor to a turntable, transferring power to rotate the platter.
Bluetooth Input
R517 wireless record player features a convenient Bluetooth input, allowing you to stream music directly from your smartphone or other Bluetooth-enabled device.
Built-in HiFi Speakers
Retrolife HiFi Record Player features a built-in 30-watt amplifier with dual 10-watt tweeters and 5-watt woofers for balanced audio.
Aluminium Platter
A turntable platter made of aluminum, offering improved vibration damping and resonance control.
Adjustable Counterweight
A movable weight attached to the tonearm that can be adjusted to apply the correct tracking force to the stylus, ensuring accurate sound reproduction.
Support 7" 10" 12" Record Size
Accommodates a variety of record sizes, including 7", 10", and 12" formats.
24W Power Consumption
Energy-efficient design with only 24 watts of power consumption.
AC Power Adapter, DC Output 12V/2A
Provides a 12-volt DC output at 2 amps.
Replaceable ATN-3600L Cartridge
Equipped with a user-replaceable ATN-3600L cartridge for extended product life.
33 1/3, 45RPM Speeds
Capable of handling standard 33 1/3 and 45 RPM vinyl records.
±0.15% Wow and Flutter
Offers exceptional speed stability with a wow and flutter measurement of ±0.15%.
0.10% Speed Variation
Offers exceptional speed stability with a speed variation measurement of 0.10%.
65dB Signal to Noise
Provides a 65dB signal-to-noise ratio, minimizing background noise and maximizing audio clarity.
Tonearm Lift
Features an automatic tonearm lift mechanism for added convenience and record protection.
Tonearm Clip
Protects the needle from damage when the turntable is moved.
Built-in Preamp
Equipped with a high-quality, built-in phono preamplifier for direct connection to a turntable.
RCA Output
Provides stereo analog audio output via RCA jacks.
AUX Input
R517's 3.5mm AUX input allows you to effortlessly connect your smartphone, tablet, or any other audio device for versatile playback options.
LINE/PHONO Switch
A switch that optimizes the input signal for different audio sources, ensuring optimal performance.
Auto Stop
Features an end-of-vinyl automatic stop function.
MDF Material
Engineered wood product made from wood fibers.
Removable Dust Cover
A protective covering designed to be easily removed and replaced.
Static Balanced, S-Shape
This means the tonearm is balanced when it's in a horizontal position, and the pivot point is a S-line. This design helps to reduce friction and improve sound quality.
Cueing Lever
A lever that is used to manually lift the tonearm away from the record. This is often used to prevent damage to the stylus when starting or stopping playback.
Aluminum Material
The tonearm is made of aluminum, a lightweight and rigid material that helps to improve sound quality and reduce resonance.
36 AWG Litz Cable / 7 Strand Tonearm Wire
This refers to the wiring used in the tonearm. 36 AWG is a measure of the wire's thickness, and "Litz" refers to a type of stranded wire that reduces skin effect and improves high-frequency response. 7-strand means there are 7 individual wires bundled together to form a single cable.
3.5 mV Output Voltage
This refers to the electrical signal produced by the cartridge when it vibrates in response to the grooves on a vinyl record. A higher output voltage typically means less amplification is needed from the phono preamp.
20Hz-20kHz Frequency Response
This specifies the range of frequencies that the cartridge can accurately reproduce. A wider frequency response generally results in a more natural and detailed sound.
2.0dB Channel Balance
This indicates how well the left and right channels of the cartridge match in terms of output level. A lower number means better channel balance, which is crucial for stereo imaging.
1kHz/10kHz: ＞18dB Channel Separation
This measures the isolation between the left and right channels at specific frequencies. Higher numbers indicate better channel separation, reducing crosstalk between channels.
2.5 - 3.5 g Tracking Force
Tracking force refers to the downward pressure applied by the stylus onto the record. The specified range indicates the optimal tracking force for this cartridge to ensure proper contact with the record groove.
Highly Polished and Shaped .0006 inch Conical Diamond
This describes the stylus, which is the part of the cartridge that actually reads the grooves on the record. "Conical" refers to the shape of the diamond tip, and ".0006 inch" is its size. A highly polished and shaped diamond stylus can improve tracking accuracy and reduce wear on the record.

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.

To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

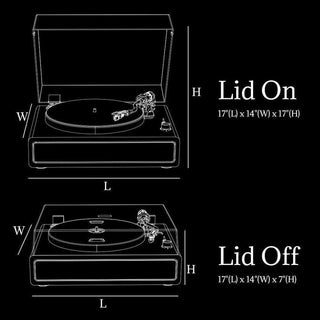

Lid On: 17"(L) x 14"(W) x 17"(H)
Lid Off: 17"(L) x 14"(W) x 7"(H)
Brown
Black
Record Player
Turntable Lid
Slip Mat
Platter
Belt
ATN3600L Cartridge
Counterweight
45RPM Adaptor
Power Cord
User Manual
View the manual for the Retrolife R517 here, for free.

R517 User Manual Download

R517 Use and Care Download

Watch our video on setting up the R517 Record Player

Do you have a question about the Retrolife R517 or do you need help? Contact us support@retrolifeplayer.com We aim to reply to you within 24 hours.

View More on Retrolife R517 Product Page

Turntable

Belt Drive System
A system where a rubber belt connects a motor to a turntable, transferring power to rotate the platter.
Bluetooth Input
R517 wireless record player features a convenient Bluetooth input, allowing you to stream music directly from your smartphone or other Bluetooth-enabled device.
Built-in HiFi Speakers
Retrolife HiFi Record Player features a built-in 30-watt amplifier with dual 10-watt tweeters and 5-watt woofers for balanced audio.
Aluminium Platter
A turntable platter made of aluminum, offering improved vibration damping and resonance control.
Adjustable Counterweight
A movable weight attached to the tonearm that can be adjusted to apply the correct tracking force to the stylus, ensuring accurate sound reproduction.
Support 7" 10" 12" Record Size
Accommodates a variety of record sizes, including 7", 10", and 12" formats.
24W Power Consumption
Energy-efficient design with only 24 watts of power consumption.
AC Power Adapter, DC Output 12V/2A
Provides a 12-volt DC output at 2 amps.

Replaceable ATN-3600L Cartridge
Equipped with a user-replaceable ATN-3600L cartridge for extended product life.
33 1/3, 45RPM Speeds
Capable of handling standard 33 1/3 and 45 RPM vinyl records.
±0.15% Wow and Flutter
Offers exceptional speed stability with a wow and flutter measurement of ±0.15%.
0.10% Speed Variation
Offers exceptional speed stability with a speed variation measurement of 0.10%.
65dB Signal to Noise
Provides a 65dB signal-to-noise ratio, minimizing background noise and maximizing audio clarity.
Tonearm Lift
Features an automatic tonearm lift mechanism for added convenience and record protection.
Tonearm Clip
Protects the needle from damage when the turntable is moved.

Built-in Preamp
Equipped with a high-quality, built-in phono preamplifier for direct connection to a turntable.
RCA Output
Provides stereo analog audio output via RCA jacks.
AUX Input
R517's 3.5mm AUX input allows you to effortlessly connect your smartphone, tablet, or any other audio device for versatile playback options.
LINE/PHONO Switch
A switch that optimizes the input signal for different audio sources, ensuring optimal performance.
Auto Stop
Features an end-of-vinyl automatic stop function.
MDF Material
Engineered wood product made from wood fibers.
Removable Dust Cover
A protective covering designed to be easily removed and replaced.

Tonearm

Cartridge

3.5 mV Output Voltage
This refers to the electrical signal produced by the cartridge when it vibrates in response to the grooves on a vinyl record. A higher output voltage typically means less amplification is needed from the phono preamp.
20Hz-20kHz Frequency Response
This specifies the range of frequencies that the cartridge can accurately reproduce. A wider frequency response generally results in a more natural and detailed sound.
2.0dB Channel Balance
This indicates how well the left and right channels of the cartridge match in terms of output level. A lower number means better channel balance, which is crucial for stereo imaging.

1kHz/10kHz: ＞18dB Channel Separation
This measures the isolation between the left and right channels at specific frequencies. Higher numbers indicate better channel separation, reducing crosstalk between channels.
2.5 - 3.5 g Tracking Force
Tracking force refers to the downward pressure applied by the stylus onto the record. The specified range indicates the optimal tracking force for this cartridge to ensure proper contact with the record groove.
Highly Polished and Shaped .0006 inch Conical Diamond
This describes the stylus, which is the part of the cartridge that actually reads the grooves on the record. "Conical" refers to the shape of the diamond tip, and ".0006 inch" is its size. A highly polished and shaped diamond stylus can improve tracking accuracy and reduce wear on the record.

To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.

To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.

Dimensions + Colors

Box Contents

User Guide
