UD006 Support Center
Find everything you need to set up, connect, operate, and maintain your UD006. From installing the platter and drive belt to balancing the tonearm and setting the correct tracking force, our step-by-step guides help you get the most from your vinyl collection.
Learn how to use Bluetooth Input and Output, connect the included 20W bookshelf speakers, record vinyl to your PC via USB, adjust playback speed, replace the ATN3600L stylus, and troubleshoot common issues such as skipping, low volume, Bluetooth connection problems, and speed inconsistencies.
Set Up Your UD006

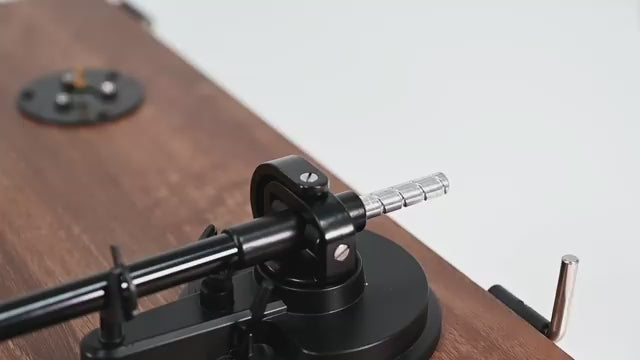

Watch the video to learn how to install the platter and belt, balance the tonearm, connect the speakers, and set up your UD006 for vinyl playback.
UD006 Frequently Asked Questions
-
To set up your UD006, install the platter, drive belt, slipmat, counterweight, and dust cover, then connect the included speakers and power adapter. Balance the tonearm and set the recommended tracking force before playing a record.
-
Place the platter over the center spindle and make sure it sits flat on the turntable. Install the drive belt around the inner rim of the platter and motor pulley, then rotate the platter by hand several times to make sure the belt is properly seated.
-
Place the belt around the inner rim of the platter, then position the platter on the spindle and hook the belt around the motor pulley through the access opening. Rotate the platter by hand several times to ensure the belt is correctly positioned.
-
Connect the power adapter, switch the unit on, select the desired playback mode, and choose 33⅓ or 45 RPM before starting playback.
-
The UD006 requires basic assembly before first use. The platter, belt, counterweight, speakers and stylus protector should be checked or installed before playing a record.
-
The UD006 uses an Audio-Technica ATN3600L moving magnet cartridge and stylus. The cartridge has a 20Hz–20kHz frequency response and a recommended tracking force of 3.0 ± 0.5g according to the cartridge specification provided for the UD006.
-
First remove the stylus protector and make sure the anti-skate or other tonearm controls are in the required setup position. Adjust the counterweight until the tonearm floats horizontally, then set the tracking-force scale to the recommended value for the cartridge.
-
Turn off and unplug the turntable before replacing the stylus. Carefully remove the old stylus assembly and install a compatible replacement without touching the stylus tip.
-
Stylus life depends on usage, record condition, cleaning and tracking setup. Replace the stylus when you notice persistent distortion, increased surface noise, poor tracking or visible stylus damage.
-
Use a dedicated stylus cleaning brush and gently brush from the rear of the cartridge toward the front. Never brush the stylus from side to side or apply excessive force.
-
Yes. Dust or debris accumulated around the stylus can interfere with groove tracking and may contribute to skipping or distorted sound.
-
The UD006 supports 7-inch, 10-inch and 12-inch vinyl records.
-
No. The UD006 is designed for 33⅓ RPM and 45 RPM records and does not support 78 RPM playback.
-
Yes. The UD006 supports 7-inch records. Use the 45 RPM adapter when required by your record.
-
Select 33⅓ or 45 RPM, place the record on the platter, release the tonearm, raise the tonearm with the cueing lever, position the stylus over the record and lower the tonearm gently.
-
Yes. The dust cover can remain closed during playback to help protect the turntable and record from dust.
-
Yes. The UD006 includes an Auto Stop function designed to stop platter rotation after the record reaches the end of playback.
-
No. Auto Stop and automatic tonearm return are different functions. The UD006 is not a fully automatic turntable.
-
Skipping can be caused by incorrect tracking force, an improperly balanced tonearm, a dirty or damaged record, a dirty or damaged stylus, an uneven surface, or an incorrectly installed belt or platter.
Start by checking the turntable is level, rebalance the tonearm, verify the tracking force, clean the record and stylus, and test another clean record. -
If only one record skips at the same location, inspect that record for scratches, contamination, warping or groove damage. If multiple records skip, check the tonearm balance, tracking force, stylus and turntable setup.
-
The tonearm may be incorrectly balanced, the tracking force may be too low, or the record or stylus may be contaminated or damaged.
-
A new record can still contain dust, pressing defects or groove damage. First clean the record and verify the turntable setup before assuming the turntable is defective.
-
Check that the correct 33⅓ or 45 RPM setting is selected. If the speed remains too fast, inspect the drive belt and motor operation and follow the UD006 motor-speed adjustment guide.
-
First confirm that the correct speed setting is selected and that the drive belt is correctly installed. A stretched, loose or incorrectly positioned belt can affect platter speed.
-
Yes. A stretched, loose, damaged or incorrectly installed belt can affect platter rotation and playback speed.
-
Consider replacing the belt if it becomes visibly damaged, loose, stretched, cracked or if the turntable continues to have speed problems after correct installation and adjustment.
-
If your records sound slightly too fast or too slow, you can fine-tune the turntable speed using the speed adjustment control on the back of the UD006.
1. Locate the Speed Adjustment Control
Find the black speed adjustment control on the back of the turntable.
2. Set the Initial Position
Before making any adjustments, set the speed control to the recommended initial position.
3. Download a Turntable Speed App
Download a turntable speed measurement app, such as Turntable Speed, on your smartphone.
4. Start the Turntable
Turn off the Auto Stop function, select 33⅓ RPM or 45 RPM, and start the turntable.
5. Place Your Phone on the Platter
Place your smartphone flat on the platter and follow the app instructions to measure the actual platter speed.
6. Fine-Tune the Speed
Check the RPM reading in the app. If the speed is too fast or too slow, gently adjust the black speed control on the back of the UD006.
Make small adjustments each time, then allow the platter to stabilize before checking the RPM reading again. Continue adjusting until the speed is as close as possible to the target 33⅓ RPM or 45 RPM.
Tip: Always make small adjustments and allow the platter to stabilize between readings for more consistent results.
-
Check that the correct 33⅓ or 45 RPM setting is selected. If the speed remains too fast, inspect the drive belt and motor operation and follow the UD006 motor-speed adjustment guide.
-
First confirm that the correct speed setting is selected and that the drive belt is correctly installed. A stretched, loose or incorrectly positioned belt can affect platter speed.
-
Yes. A stretched, loose, damaged or incorrectly installed belt can affect platter rotation and playback speed.
-
Consider replacing the belt if it becomes visibly damaged, loose, stretched, cracked or if the turntable continues to have speed problems after correct installation and adjustment.
-
If your records sound slightly too fast or too slow, you can fine-tune the turntable speed using the speed adjustment control on the back of the UD006.
1. Locate the Speed Adjustment Control
Find the black speed adjustment control on the back of the turntable.
2. Set the Initial Position
Before making any adjustments, set the speed control to the recommended initial position.
3. Download a Turntable Speed App
Download a turntable speed measurement app, such as Turntable Speed, on your smartphone.
4. Start the Turntable
Turn off the Auto Stop function, select 33⅓ RPM or 45 RPM, and start the turntable.
5. Place Your Phone on the Platter
Place your smartphone flat on the platter and follow the app instructions to measure the actual platter speed.
6. Fine-Tune the Speed
Check the RPM reading in the app. If the speed is too fast or too slow, gently adjust the black speed control on the back of the UD006.
Make small adjustments each time, then allow the platter to stabilize before checking the RPM reading again. Continue adjusting until the speed is as close as possible to the target 33⅓ RPM or 45 RPM.
Tip: Always make small adjustments and allow the platter to stabilize between readings for more consistent results.
-
No. Bluetooth Input and Bluetooth Output are separate operating modes. Select the mode that matches the connection you want to use.
-
Make sure the UD006 is in Bluetooth Output mode and that the Bluetooth speaker is available for pairing. Disconnect the speaker from other Bluetooth devices before trying again.
-
Bluetooth disconnections can result from distance, interference, another connected device or pairing issues. Keep the devices within normal Bluetooth range and remove previous pairings if necessary.
-
No. The included speakers are wired passive speakers. Bluetooth Input and Output are handled by the UD006 turntable.
-
Yes. Volume can be adjusted using the controls on the UD006 turntable.
-
Check the power connection, speaker cables, selected playback mode, volume level and PHONO/LINE setting. Make sure both speaker connections are secure.
-
Check the speaker cable connection on both ends and make sure the left and right channels are connected correctly. Test the connection again after switching off the system.
-
Check the volume level, PHONO/LINE setting, speaker connections and source. If the volume remains unusually low, follow the dedicated UD006 low-volume troubleshooting guide.
-
Check the RCA connections, speaker connections, power connections, and grounding. Make sure the ground wire is securely connected to the GND terminal on the UD006. Keep the ground wire and audio cables properly connected, and keep them away from power adapters and other potential sources of electrical interference.
If the buzzing or humming continues, disconnect and reconnect the ground wire and RCA cables, then test the system again. -
Surface noise can come from dust, scratches, static or the condition of the record. Clean the record and stylus and test another record to determine whether the issue is record-specific.
-
Check the volume level, stylus condition, tracking force, record condition and speaker connections. Excessive volume or an improperly configured tonearm can contribute to distorted playback.
-
Yes. The UD006 turntable includes a built-in phono preamp.
-
The PHONO/LINE switch determines how the turntable's analog signal is handled for connection to compatible audio equipment.
-
Use the appropriate setting for the equipment you are connecting. LINE mode is generally used when connecting to equipment that expects a line-level signal, while PHONO mode is used when an external phono stage is required.
-
Yes. Connect the UD006 to a computer through USB and use compatible audio recording software to capture your vinyl playback.
-
The USB connection is intended for PC recording and digitization. For wireless playback from a phone or computer, use Bluetooth Input.
-
Check the USB cable, USB port and computer audio settings. Reconnect the cable and try another USB port if the computer does not recognize the turntable.
-
Remove the platter, remove the old belt and install the replacement belt around the platter's inner rim. Reinstall the platter and position the belt around the motor pulley.
-
No. Use a belt that is compatible with the UD006's platter and motor configuration. An incorrect belt size can cause speed instability or prevent proper operation.
-
Use a soft, dry or slightly damp lint-free cloth. Avoid applying liquid directly to the turntable mechanism.
-
Use a suitable vinyl record cleaning brush or cleaning solution designed for records. Remove dust before playback to reduce surface noise and contamination.
-
Store records vertically in a cool, dry environment away from direct sunlight and excessive heat. Avoid stacking records horizontally for long-term storage.
-
Yes. Place the turntable on a stable, level surface. An uneven surface can affect tonearm tracking and contribute to playback problems.
-
Place the UD006 on a stable surface away from strong vibration sources such as subwoofers or unstable furniture. Avoid touching or moving the turntable during playback.
-
Check the power adapter, power connection and wall outlet. Make sure the DC connector is fully inserted into the turntable.
-
Check the power connection, selected playback mode, platter installation and drive belt. Make sure the belt is correctly positioned around the motor pulley.
-
Check whether Auto Stop is active and verify that the stylus has reached the end of the record. If the turntable stops unexpectedly during playback, inspect the belt, platter and motor operation.
-
Check the record, stylus, platter, belt and speaker connections. Mechanical noise can also result from an uneven surface or loose components.
-
First, check whether the stylus is securely installed and properly seated on the cartridge. Make sure the stylus is not bent, loose, cracked, or visibly damaged. Do not touch the stylus tip with your fingers.
For a quick way to isolate the problem, switch the UD006 to Bluetooth Input and connect your phone. Play music through the UD006 speakers.
If Bluetooth audio plays normally without distortion, buzzing, or unusual noise, the speakers and amplifier are likely working properly. The issue may be related to the stylus, cartridge installation, tracking force, or vinyl record.
If the Bluetooth audio is also distorted or abnormal, check the speaker connections, RCA connections, volume level, and power connections before further troubleshooting.
Quick Test- Bluetooth Input works normally → Check the stylus, cartridge, tracking force, or record.
- Bluetooth Input also sounds abnormal → Check the speakers, connections, power, or amplifier.
- Bluetooth Input works normally → Check the stylus, cartridge, tracking force, or record.
Can’t find what you’re looking for?
If the problem persists after following the relevant troubleshooting steps, contact Retrolife Support with your order number, product model, a description of the issue, and clear photos or a video showing the affected area, component, or connection.
